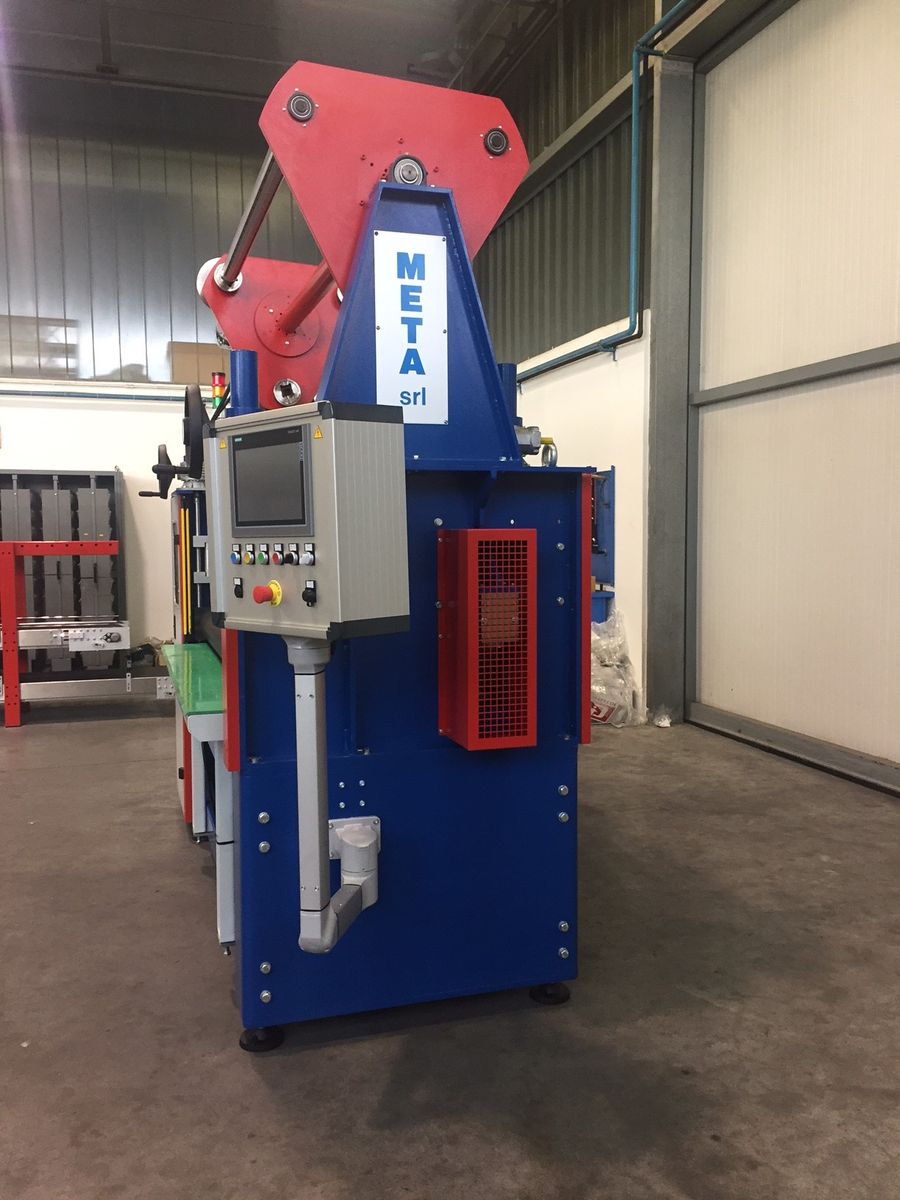

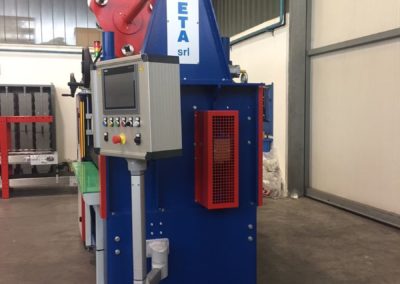

PLASTICATORS FOR SHEET METAL “ZERO-CUT” SYSTEM.
The META Plasticators are designed to coat the surfaces of the sheet metal processed with a plastic film to protect them from dust, scratches and damage that could occur during handling and forming operations.
All the Plasticators for sheet metal produced by us can be integrated with satinizing and brushing machines.
The META Plasticators for sheet metal use a “zero-cut” system.
GENERAL DATA
› Type of cut of the plastic film motorized, with “ZERO” finish
› Useful widths 1600 – 2100 mm
› Minimum sheet length 600 mm
› Thickness range from 0.4 to 8.0 mm
› Adjustable feed speed up to 40 m / min
› Rollers covered in rubber with a diameter of 160 mm and motorized with 2 or 3 gear motors without brushes
› “Standard” 2-seater upper roll-holder system or 3-seater motorized upper roll-holder
› Roll-holder shaft of 74 mm diameter with pneumatic expansion
› Internal coil diameter 76.2 mm; external up to 450 mm
› Manual adjustment of the working thickness
› Pneumatic braking system to vary the tension of the film
› Adjustable banana roller for tensioning the plastic film
› Height of the worktop from 850 to 950 mm
› Machine weight 2,500 kg
› Integrated security systems
